FIL.SmoothImage_Gauss_Mask
Smooths an image using a predefined gaussian kernel.
| Namespace: | FilNet |
|---|---|
| Assembly: | FIL.NET.dll |
Syntax
public static void SmoothImage_Gauss_Mask ( FilNet.Image inImage, FilNet.GaussKernel inKernel, FilNet.Image outImage )
Parameters
| Name | Type | Range | Default | Description | |
|---|---|---|---|---|---|
 | inImage | FilNet.Image | Input image. | ||
| inKernel | FilNet.GaussKernel | Predefined Gauss kernel. | ||
 | outImage | FilNet.Image | Output image. |
Description
This operation is a simplified, fast in computation, version of SmoothImage_Gauss, with predefined kernel and simplified ROI handling.
Kernel used in operation can be chosen by inKernel parameter:
- Box_3x3: 3 by 3 pixels kernel with StdDev ≈ 0.85 of following form:
- Box_5x5: 5 by 5 pixels kernel with StdDev ≈ 1.1 of following form:
- Box_7x7: 7 by 7 pixels kernel with StdDev ≈ 1.7 of following form:

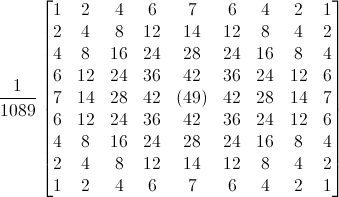

- Box_9x9: 9 by 9 pixels kernel with StdDev ≈ 2.0 of following form:

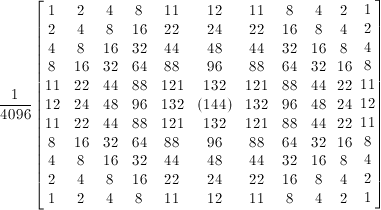

- Box_11x11: 11 by 11 pixels kernel with StdDev ≈ 2.2 of following form:
Examples
 |
 |
SmoothImage_Gauss_Mask performed on a sample image with inKernel = _11x11.
Hardware Acceleration
This operation is optimized for SSE2 technology for pixels of types: UINT8, SINT16.
This operation is optimized for SSE4.1 technology for pixels of types: Kernel 11x11 UINT8.
This operation is optimized for AVX2 technology for pixels of type: UINT8.
This operation supports automatic parallelization for multicore and multiprocessor systems.
Hardware acceleration settings may be manipulated with Settings class.
