SmoothImage_Gauss_Mask
Header: | FIL.h |
---|---|
Namespace: | fil |
Smooths an image using a predefined gaussian kernel.
Syntax
void fil::SmoothImage_Gauss_Mask ( const fil::Image& inImage, ftl::Optional<const fil::Region&> inRoi, fil::GaussKernel::Type inKernel, fil::Image& outImage )
Parameters
Name | Type | Default | Description | |
---|---|---|---|---|
![]() |
inImage | const Image& | Input image | |
![]() |
inRoi | Optional<const Region&> | NIL | Range of outImage pixels to be computed |
![]() |
inKernel | GaussKernel::Type | Predefined Gauss kernel | |
![]() |
outImage | Image& | Output image |
Description
This operation is a simplified, fast in computation, version of SmoothImage_Gauss, with predefined kernel and simplified ROI handling.
Kernel used in operation can be chosen by inKernel parameter:
- Box_3x3: 3 by 3 pixels kernel with StdDev ≈ 0.85 of following form:
- Box_5x5: 5 by 5 pixels kernel with StdDev ≈ 1.1 of following form:
- Box_7x7: 7 by 7 pixels kernel with StdDev ≈ 1.7 of following form:

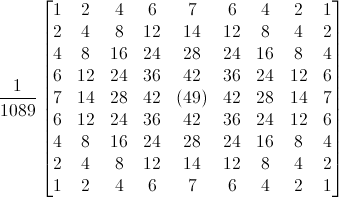

- Box_9x9: 9 by 9 pixels kernel with StdDev ≈ 2.0 of following form:

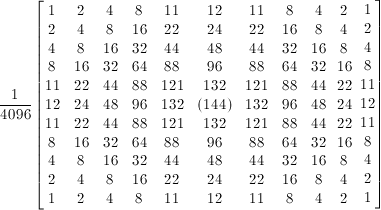

- Box_11x11: 11 by 11 pixels kernel with StdDev ≈ 2.2 of following form:
Hints
- Select kernel size by setting the inKernel input.
Examples
![]() |
![]() |
SmoothImage_Gauss_Mask performed on a sample image with inKernel = _11x11.
Hardware Acceleration
This operation is optimized for SSE2 technology for pixels of types: UINT8, SINT16.
This operation is optimized for SSE4.1 technology for pixels of types: Kernel 11x11 UINT8.
This operation is optimized for AVX2 technology for pixels of type: UINT8.
This operation supports automatic parallelization for multicore and multiprocessor systems.
See Also
- SmoothImage_Gauss – Smooths an image using a gaussian kernel.
- SmoothImage_Mean_Mask – Smooths an image by averaging pixels within a small rectangular kernel.
