User Defined Types for Xml database

Aim:

This program shows how to work with custom user-defined types.

There are two user types defined:

  1. Person type contains fields: FirstName, LastName, Address, Department

  2. Department type - it is an enumeration type which contains options: Art, News and Science

Input:

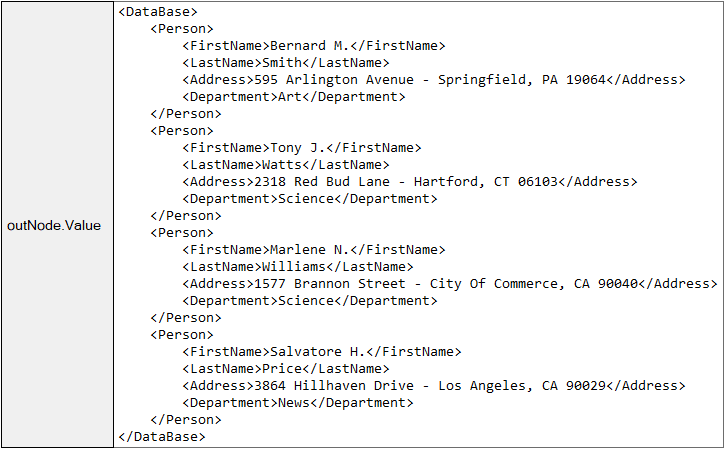

The Xml database containing contact details.

Output:

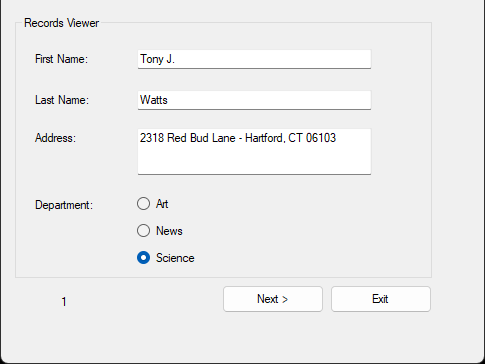

The contact details presented on HMI.

Hints:

To get the contact details, handling Xml file tools will be needed. Creating user types is explained in this article.

Solution (FIS):

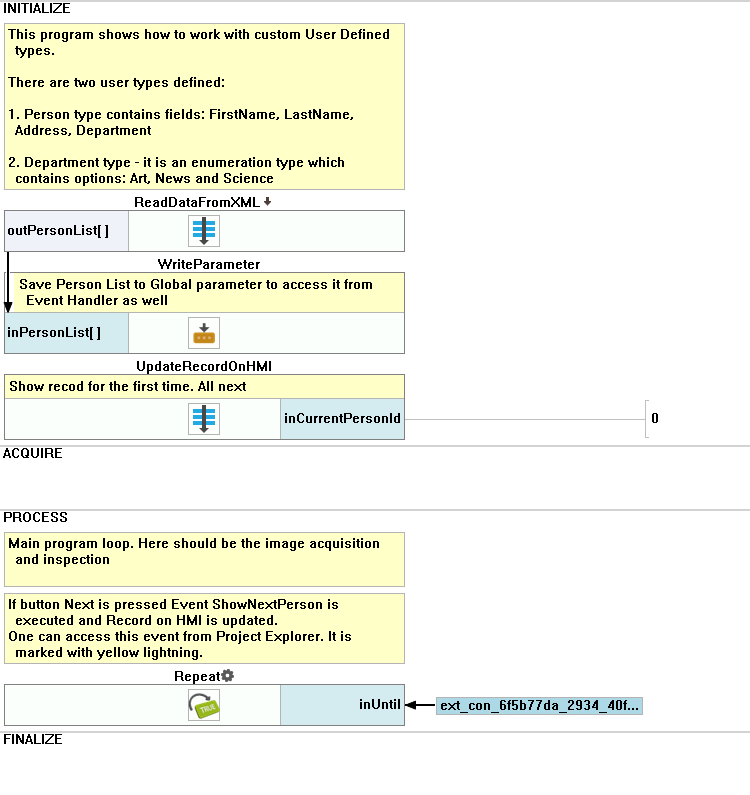

Macrofilter Main.

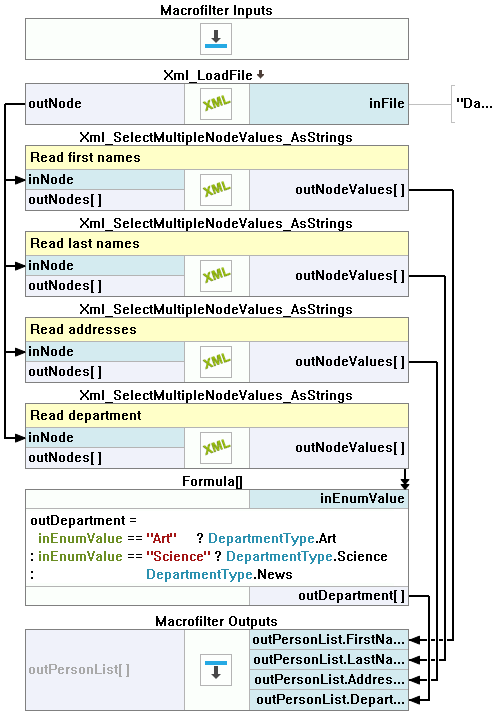

Macrofilter ReadDataFromXML.

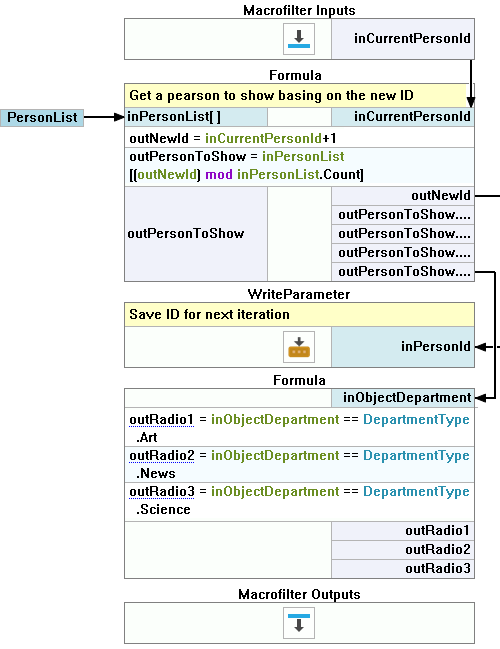

Macrofilter UpdateRecordOnHMI.

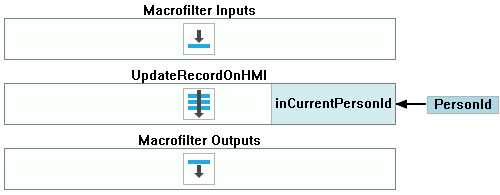

Macrofilter ShowNextPerson.
