SegmentArcIntersection


Header: FIL.h
Namespace: fil

Computes the common points of an arc and a segment.

Syntax

void fil::SegmentArcIntersection
(
	const fil::Segment2D& inSegment,
	const fil::Arc2D& inArc,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint1,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint2
)

Parameters

Name Type Default Description
Input value inSegment const Segment2D&
Input value inArc const Arc2D&
Output value outIntersectionPoint1 Conditional<Point2D>&
Output value outIntersectionPoint2 Conditional<Point2D>&

Examples

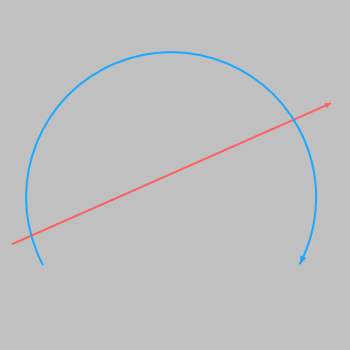

SegmentArcIntersection performed on segment and arc.
