LineArcIntersection


Header: FIL.h
Namespace: fil

Computes the common points of an arc and a line.

Syntax

void fil::LineArcIntersection
(
	const fil::Line2D& inLine,
	const fil::Arc2D& inArc,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint1,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint2
)

Parameters

Name Type Default Description
Input value inLine const Line2D&
Input value inArc const Arc2D&
Output value outIntersectionPoint1 Conditional<Point2D>&
Output value outIntersectionPoint2 Conditional<Point2D>&

Examples

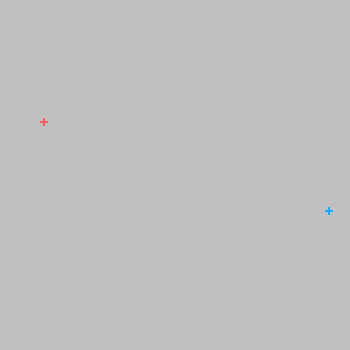

LineArcIntersection performed on line and arc.

Errors

List of possible exceptions:

Error type Description
DomainError Indefinite line on input in LineArcIntersection.
