ProjectPointsOnLine


Header: FIL.h
Namespace: fil

Projects points onto a line.

Syntax

void fil::ProjectPointsOnLine
(
	const ftl::Array<fil::Point2D>& inPoints,
	const fil::Line2D& inLine,
	ftl::Array<fil::Point2D>& outProjectionPoints,
	ftl::Optional<ftl::Conditional<fil::Segment2D>&> outProjectionSegment = ftl::NIL
)

Parameters

Name Type Default Description
Input value inPoints const Array<Point2D>&
Input value inLine const Line2D&
Output value outProjectionPoints Array<Point2D>&
Output value outProjectionSegment Optional<Conditional<Segment2D>&> NIL

Optional Outputs

The computation of following outputs can be switched off by passing value ftl::NIL to these parameters: outProjectionSegment.

Read more about Optional Outputs.

Description

The orientation of the resulting outProjectionSegment is always between 0 and 180 degrees.

Examples

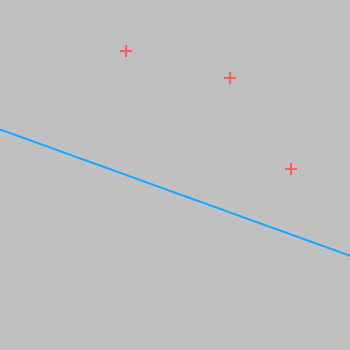

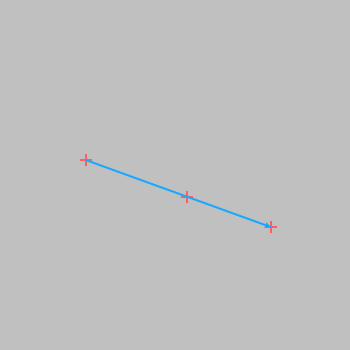

ProjectPointsOnLine performed on points and line.

Errors

List of possible exceptions:

Error type Description
DomainError Indefinite line on input in ProjectPointsOnLine.
