Brick destroy (Game)

The aim of this application is to show the possibilities of the interaction between the user and the application thanks to the User Input filters, and how to create a dynamic HMI with Region analysis tools and Image Drawing filters. For this purpose a simple game has been created - Brick Destroy. Please have a look at the application.

Macrofilter Main

Macrofilter ObstaclesCollisions

Macrofilter MovePalletWithClipping

Macrofilter HandleMovement

Macrofilter HandleCollisions

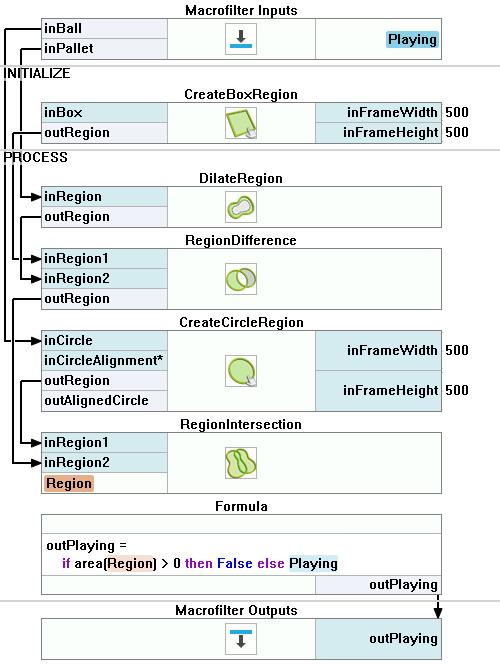

Macrofilter CheckForFailure

Macrofilter DrawScene(True)

Macrofilter DrawScene(False)

Macrofilter GameLoop

Used Filters

Icon	Name	Description
	DrawStrings_MultiColor	Draws strings (text) on an image with multiple colors.
	CreateBoxRegion	Creates a rectangular region corresponding to a given box.
	Loop	Put this filter into a task that should have a loop, but does not have any other loop generators (e.g. GrabImage).
	TranslateRegion	Translates a region by a given number of pixels along each axis.
	CreateIntegerSequence	Creates an arithmetic sequence of integer numbers.
	DilateRegion	Making the region thicker or filling-in small holes within it.
	CreateCircleRegion	Creates a circular region corresponding to a given circle.
	DrawCircles_SingleColor	Draws circles on an image with a single color.
	EmptyImage	Most typically used to prepare a background for image drawing tools.
	RegionDifference	Computes a region containing pixels from the first input region but not from the second input region.
	RegionBoundingBox	Computes the smallest box containing a region.
	RegionIntersection	Computes the common part of two regions.
	DrawRegions_MultiColor	Draws regions on an image with multiple colors.
	ClassifyByRange	E.g. selection of the objects (e.g. blobs) whose associated values (e.g. area) meet the specified minimum and maximum requirements.
	DrawRegions_SingleColor	Draws regions on an image with a single color.
	GetKeyboardKeyState	Checks if the specified keyboard key is down and if it is toggled.
