CircleCircleIntersection


Header: FIL.h
Namespace: fil

Computes common points of two circles.

Syntax

void fil::CircleCircleIntersection
(
	const fil::Circle2D& inCircle1,
	const fil::Circle2D& inCircle2,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint1,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint2
)

Parameters

Name Type Default Description
Input value inCircle1 const Circle2D&
Input value inCircle2 const Circle2D&
Output value outIntersectionPoint1 Conditional<Point2D>&
Output value outIntersectionPoint2 Conditional<Point2D>&

Examples

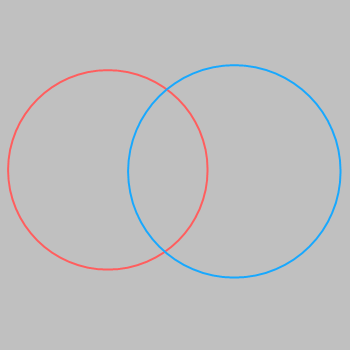

CircleCircleIntersection performed on two circles.
