FIL.AlignArc
Moves an arc from a local coordinate system to the absolute one.
| Namespace: | FilNet |
|---|---|
| Assembly: | FIL.NET.dll |
Syntax
C++
C#
public static void AlignArc ( FilNet.Arc2D inArc, FilNet.CoordinateSystem2D inAlignment, bool inInverse, out FilNet.Arc2D outAlignedArc )
Parameters
| Name | Type | Range | Default | Description | |
|---|---|---|---|---|---|
 | inArc | FilNet.Arc2D | |||
| inAlignment | FilNet.CoordinateSystem2D | Coordinate system to align to. | ||
| inInverse | bool | Switches to the inverse transform. | ||
 | outAlignedArc | FilNet.Arc2D |
Description
AlignArc aligns the inArc to the inAlignment coordinate system. The input arc is translated, rotated and scaled.
The inAlignment is usually a coordinate system found by some template matching algorithm.
Examples
 |
 |

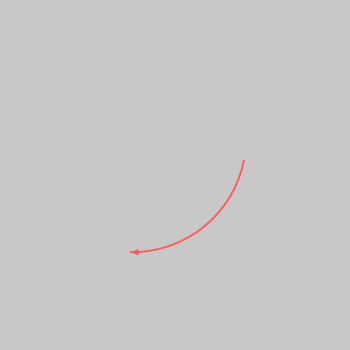

AlignArc performed on the sample arc. The inAlignment is drawn on the first image in blue.
