FIL.RescaleRectangle
Changes the corners and the dimensions of a rectangle.
| Namespace: | FilNet |
|---|---|
| Assembly: | FIL.NET.dll |
Syntax
C++
C#
public static void RescaleRectangle ( FilNet.Rectangle2D inRectangle, FilNet.Point2D? inReferencePoint, float inScale, bool inInverse, out FilNet.Rectangle2D outRectangle )
Parameters
| Name | Type | Range | Default | Description | |
|---|---|---|---|---|---|
 | inRectangle | FilNet.Rectangle2D | |||
| inReferencePoint | FilNet.Point2D? | The point, to which all distance will be changed proportionally. Default value: ftl::NIL. | ||
| inScale | float | 1.0f | Scaling factor. Default value: 1.0f. | |
| inInverse | bool | Switches to the inverse operation. | ||
 | outRectangle | FilNet.Rectangle2D |
Examples
 |
 |

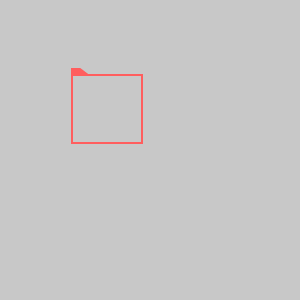

RescaleRectangle performed on the sample rectangle, inReferencePoint = (0.0, 0.0), inScale = 2.0 and inInverse = false.
Errors
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Scale cannot be zero in inverse scaling of rectangle in RescaleRectangle. |
