FIL.ResizeRectangle_Relative

Changes dimensions of a rectangle relatively.

Namespace:FilNet
Assembly:FIL.NET.dll

Syntax

C++
C#

public static void ResizeRectangle_Relative
(
	FilNet.Rectangle2D inRectangle,
	FilNet.Anchor2D inAnchor,
	float inWidthScale,
	float inHeightScale,
	out FilNet.Rectangle2D outRectangle
)

Parameters

Name Type Range Default Description
inRectangleFilNet.Rectangle2D
inAnchorFilNet.Anchor2DTopLeftDefault value: TopLeft.
inWidthScalefloat<0.0f, INF>1.0fDefault value: 1.0f.
inHeightScalefloat<0.0f, INF>1.0fDefault value: 1.0f.
outRectangleFilNet.Rectangle2D

Examples

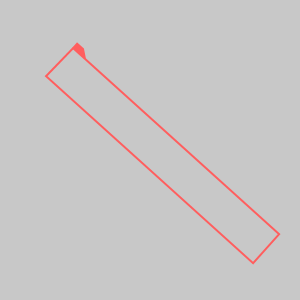

ResizeRectangle_Relative performed on the sample rectangle, inWidthScale = 2.0 and inHeightScale = 0.5.

See also
