FIL.CircleSection
Computes an arciform section of the circle perimeter.
| Namespace: | FilNet |
|---|---|
| Assembly: | FIL.NET.dll |
Syntax
C++
C#
public static void CircleSection ( FilNet.Circle2D inCircle, float inStartAngle, float inSweepAngle, out FilNet.Arc2D outArc )
Parameters
| Name | Type | Range | Default | Description | |
|---|---|---|---|---|---|
 | inCircle | FilNet.Circle2D | Input circle. | ||
| inStartAngle | float | Direction at which the arc begins. | ||
| inSweepAngle | float | Angular length of the arc (may be negative). | ||
 | outArc | FilNet.Arc2D |
Examples
 |
 |

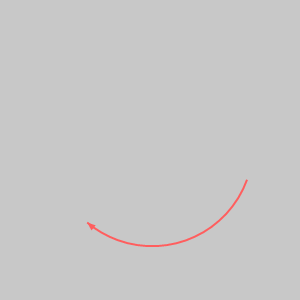

CircleSection performed on the sample circle, inStartAngle = 20.0 and inSweepAngle = 110.0.
