You are here: Start » Function Reference » Region » Region Features » RegionInscribedBox

RegionInscribedBox


Header: FIL.h
Namespace: fil
Module: FoundationBasic

Computes the largest box contained in a region.

Syntax

C++
C#

void fil::RegionInscribedBox
(
	const fil::Region& inRegion,
	const float inMinAspectRatio,
	ftl::Optional<float> inMaxAspectRatio,
	const int inMinWidth,
	ftl::Optional<int> inMaxWidth,
	const int inMinHeight,
	ftl::Optional<int> inMaxHeight,
	ftl::Conditional<fil::Box>& outBox
)

Parameters

Name Type Range Default Description
Input value
 inRegion const Region& Input region
Input value
 inMinAspectRatio const float 0.0 - 0.0f Minimal aspect ratio of found box
Input value
 inMaxAspectRatio Optional<float> 0.0 - NIL Maximal aspect ratio of found box (reciprocal of inMinAspectRatio by default)
Input value
 inMinWidth const int 1 - 65535 1 Minimal width of found box
Input value
 inMaxWidth Optional<int> 1 - 65535 NIL Maximal width of found box
Input value
 inMinHeight const int 1 - 65535 1 Minimal height of found box
Input value
 inMaxHeight Optional<int> 1 - 65535 NIL Maximal height of found box
Output value
 outBox Conditional<Box>& Found box with largest area

Examples

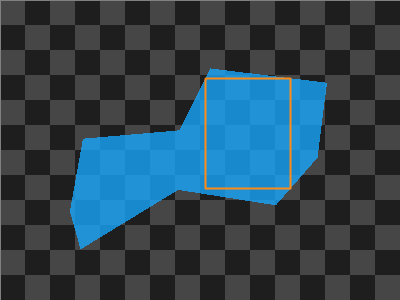

RegionInscribedBox performed on a sample region with inMaxAspectRatio = Auto.

RegionInscribedBox performed on a sample region with inMaxAspectRatio = 2.0.
