Count Nails (nails)
Aim
Devise an algorithm that counts the nails present among various objects in an image.
Input
A single image with different objects present.
The input image is stored in the
nails
directory.
Output
An Integer value with number of found nails.
Expected value: 5
Hints
The backlight source makes objects very contrastive. Objects can be separated from the background very easily using the basic ThresholdToRegion filter.
Objects are physically separated and that makes it possible to split them into separate blobs using the SplitRegionIntoBlobs filter.
Regions can be classified using the ready-to-use ClassifyRegions tool which can be found in Toolbox, Region Analysis, Region Logic group.
FabImage Studio also provides separate filters that can be used to classify blobs which can be found in Toolbox, Region Analysis, Region Feature group.
These filters can be very useful to preform classification using different regions' features.
Labeling connections is explained in this article.

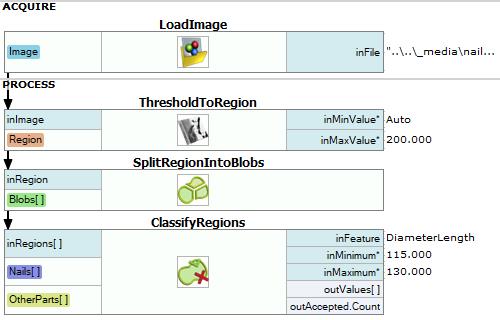

Solution (FIS)
►Click here to show the solution.
Further Readings
- Blob Analysis - Article presents detailed information about the Blob Analysis technique.
