PathPathIntersections
Computes the common points of two paths.
|
Name |
Type |
Description |
 |
inPath1 |
Path |
Input path |
|
inPath2 |
Path |
Input path |
 |
outIntersectionPoints |
Point2DArray |
Intersections between the input paths |
|
outSegmentIndices1 |
IntegerArray |
Indices of the segments of the first path which generate found intersection points |
|
outSegmentIndices2 |
IntegerArray |
Indices of the segments of the second path which generate found intersection points |
Description
The operation computes an array of the intersection points of two given paths.
Examples

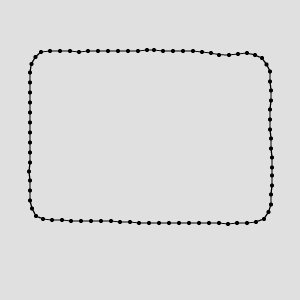

PathPathIntersections run on the sample paths. The resulting outIntersectionPoints were drawn onto the input paths.
Complexity Level
This filter is available on Advanced Complexity Level.
