Plate Measurement (Advanced)

1. Add the FindFiles filter to enumerate images in an array mode.
2. Add the LoadImage filter and connect outFilePaths to inFile.
3. Add a new step macrofilter Measure. Connect outImage to its inputs.
4. In Project Explorer find the Create New Global Parameter button, click it and:
   • Set name to ScanCount,
   • Set type to IntegerArray,
   • Set values: 5, 10, 20, 30, 50. This will allow you to perform several width measurements with a different number of scans each time. When widths in each iteration are eventually computed, output data is collected in an array, and in this way some statistics (like standard deviation) can be calculated.
5. Connect ScanCount to the macrofilters inputs as an array connection and step inside it.
6. Add the MeasureObjectWidth filter to compute the width, which is the most suitable filter to use in that case.
7. Connect macrofilter's inInput to inImage.
8. Connect macrofilter's inScanCount to inScanCount.
9. Click on the MeasureObjectWidth filter and make these changes in Properties window (in the left bottom corner):

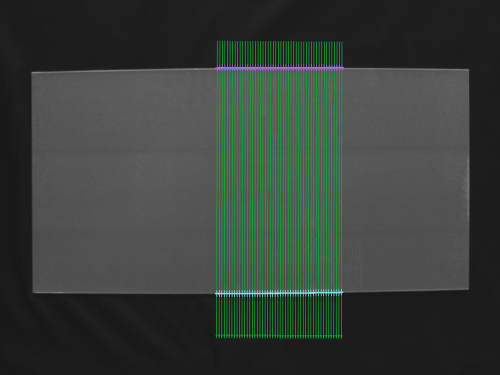

   • Define a scanning field in inScanField vertically and let it be wide enough (for example one third of plate's width).

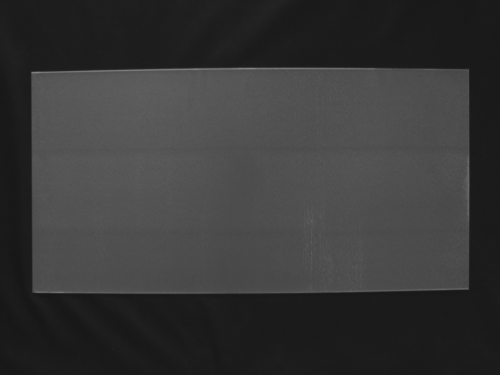

   • Set inStripeScanParams.StripePolarity to Bright, because the plate is slightly brighter than the background and it may not be detected properly otherwise.
   • Set inStripeScanParams.MinStripeWidth to 500 to make sure that some false edges are not detected.

10. Add the Empty formula filter and create an input using outObjectWidth output.

11. Create a new output outStandardDeviation of Real type, remove Nil values from it and compute standard deviation using following command:

    • outStandardDeviation = stdDev(removeNils(inPlateWidth))



12. Connect outStandardDeviation to macrofilter outputs as outStandardDeviation.

13. Go back to Main and add the RealArrayToProfile filter to get a profile from an array of Real values. Connect outStandardDeviation from Measure macrofilter with inArray. As you can see based on the profile, that the more scans are performed, the more precise measurement is (standard deviation gets gradually lower).

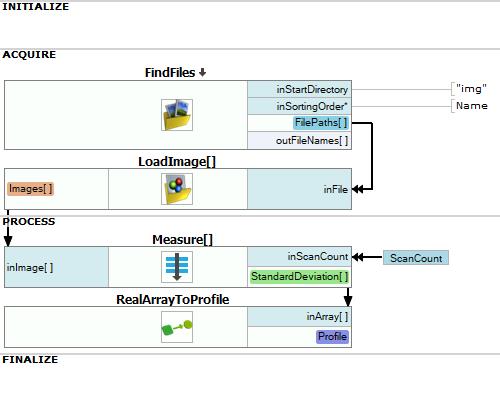

Macrofilter Main

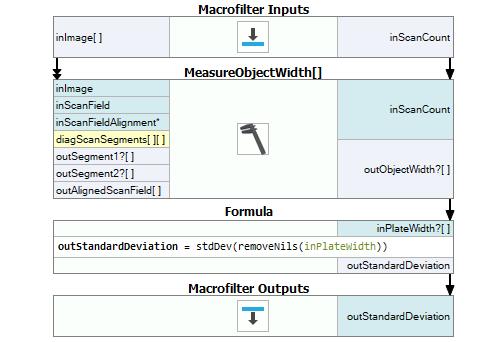

Macrofilter Measure
