Dynamic Template Matching

Aim

The aim of this program is to create a dynamic template for matching purposes.

Input

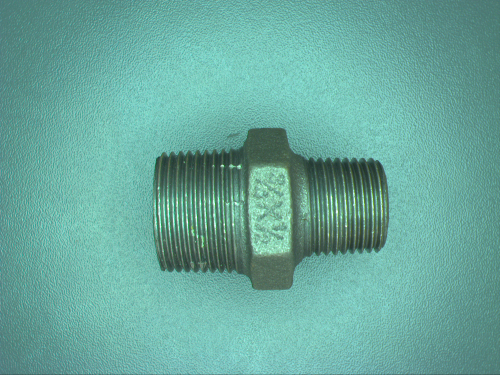

Image from Web Camera.

Output

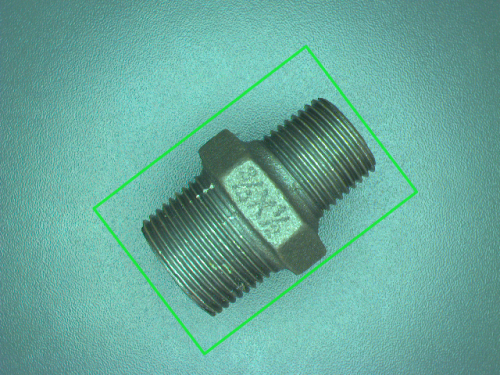

Rectangle-shaped match to the object in the image. In this example we used an image from an industrial camera, however the example is meant to be for online tests. It depends on user's intention what exactly should be detected.

Hints

To create such an application we need filters to grab a frame from Web Camera and Template Matching filters.

Labeling connections is explained in this article.

Solution (FIS)

►Click here to show the solution.

Add WebCamera_GrabImage filter to the ACQUIRE section.
Add ResizeImage filter to the ACQUIRE section and connect outFrame from previous filter with inImage input.
Set inNewWidth to 640 and inNewHeight to 480 in Properties window of ResizeImage filter.
Add a new Variant macrofilter to the PROCESS section and name it CreateModel.
- Name the input inButtonPressed of Bool data type.
- Connect prevModel macrofilter Main input with CreateModel macrofilter. Data type will be set automatically - just click OK.
- Connect outImage to CreateModel macrofilter as a new input. Click OK for a default data type.
Create HMI by clicking on HMI button on upper toolbar.
- Add to HMI selectingVideoBox and an impulseButton beneath.
- Name the button Create Model (changes are made in Properties window in the lower left corner of FIS)

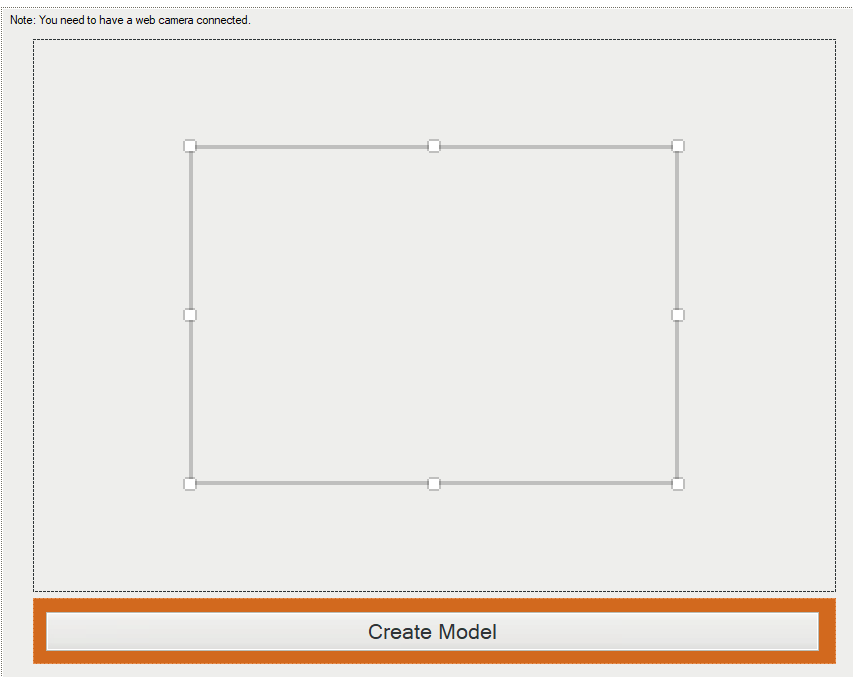

- Make your HMI looks like on this image:
Perform these connections between HMI and program:
- Connect outValue from HMI's Create Model button with inPressedButton input of Create Model macrofilter.
- Connect outSelection from HMI's selectingVideoBox with CreateModel filter. Name the input inSelection. Set data type to Box ? and click OK.
In step CreateModel for variant "true" add CreateBoxRegion filter.
- Right-click on inImage macrofilter input, find Property Outputs and select Width and Height.
- Connect them to inFrameWidth and inFrameHeight respectively.
- Connect inSelection? from macrofilter's input with inBox of CreateBoxRegion filter's input.
Add CreateEdgeModel filter.
- Connect image to inImage.
- Connect outRegion to inTemplateRegion.
- Connect diagEdges and outEdgeModel to macrofilter outputs.
- Set these new values: inEdgeThreshold to 60, inEdgeHysteresis to 40, inMinAngle to -45 and finally inMaxAngle to 45.
- Skip to variant "False" and just connect inModel with outEdgeModel.
Add LastNotNil filter after CreateModel macrofilter. In a new window of choosing generic filter data type select "Choose later". Connect diagEdges to it. Click OK.
Add LocateSingleObject_Edges filter.
- Click on "Show Ports" on this filter and choose inEdgeModel.
- Connect outEdgeModel output from CreateModel and outImage from ResizeImage to the current filter.
- In Properties window change default value of LocateSingleObjects_Edges to auto and set inMinScore to 0.6.
Add DrawRectangles_SingleColor and connect outObject.Match to inRectangles and connect image from ResizeImage filter to inImage. Connect outImage to inImage on HMI input of selectingVideoBox.
Connect outEdgeModel from CreateModel to the macrofilter's output nextModel.

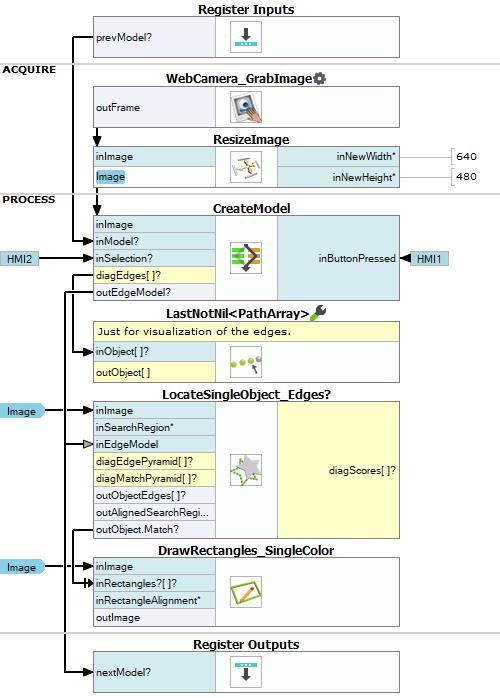

Macrofilter Main

Used Filters

►Click here to show the filters list.

Icon	Name	Description
	CreateBoxRegion	Creates a rectangular region corresponding to a given box.
	LocateSingleObject_Edges	Detection of an object whose outlines are sharp and rigid. Often one of the first filters in a program.
	CreateEdgeModel	Dynamic creation of models in the runtime environment (normally they are created interactively in Studio).
	DrawRectangles_SingleColor	Draws rectangles on an image with a single color.
	LastNotNil	Returns the last value passed that existed.
	ResizeImage	Enlarges or shrinks an image to new dimensions.
	WebCamera_GrabImage	Not recommended for industrial operation.
