Comparing Golden Template

Aim

This example shows how to find defects on the bottle head. Golden Template technique can be used to find even the smallest defect.

Input

Set of images with a single bottle head.

Output

Image with marked defects on it.

Hints

Best way to find defects is to locate bottle head using Template Matching and compare the matches using Golden Template technique.

In this case one should use CompareGoldenTemplate_Edges filter.

Labeling connections is explained in this article.

Solution (Studio)

  1. Add the EnumerateImages filter to load images from the images directory.

  2. Find the position of an object add filter LocateSingleObject_Edges and prepare a template model like on the image below:

    Thanks to using two separated areas in Template Matching location is more precise, while model is still tiny.

  3. Add filter CompareGoldenTemplate_Edges and connect to inImage output of EnumerateImages.

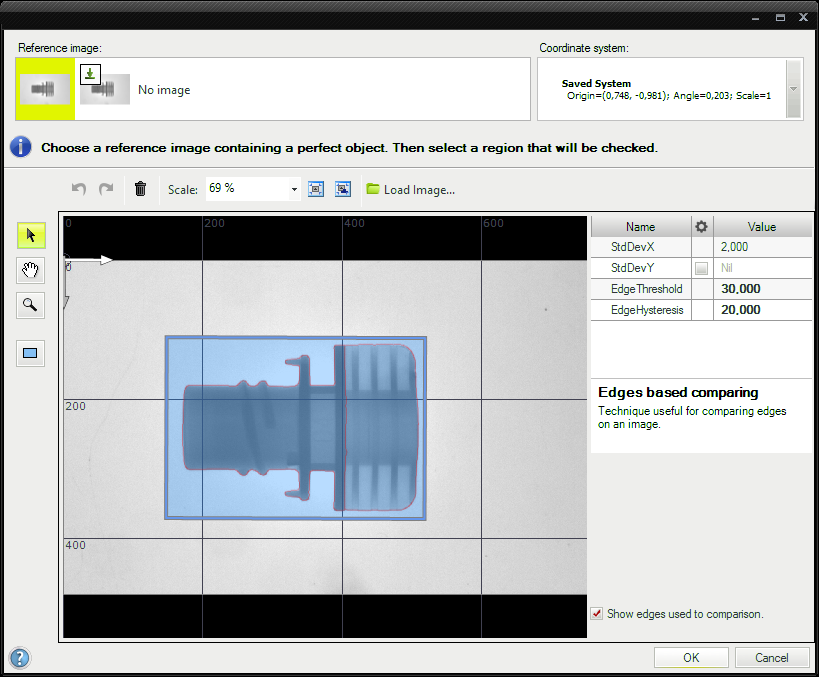

  4. Using the Golden Template Editor select a template on the first image. Set EdgeThreshold to 30 and EdgeHysteresis to 20.

  5. Configure the CompareGoldenTemplate_Edges filter with the same values as in Golden Template Editor. Set inEdgeThreshold to 30.0 and inEdgeHysteresis to 20.

  6. Add DilateRegion filter and connect to it data from outDefects to expand defects region and make it more visible.

  7. Connect dilated region with inRegions of filter DrawRegions_SingleColor to draw defect regions on output image.

Macrofilter Main uses the Template Matching and Golden Template techniques to find defects on a bottle head.

Used Filters

Icon Name Description
CompareGoldenTemplate_Edges Finding general object defects by analyzing missing or excessive edges.
LocateSingleObject_Edges Detection of an object whose outlines are sharp and rigid. Often one of the first filters in a program.
EnumerateImages Emulates image acquisition with images stored on disk.
DilateRegion Making the region thicker or filling-in small holes within it.
DrawRegions_SingleColor Draws regions on an image with a single color.
