CircleCircleIntersection

Header:	FIL.h
Namespace:	fil

Computes common points of two circles.

Syntax

void fil::CircleCircleIntersection
(
	const fil::Circle2D& inCircle1,
	const fil::Circle2D& inCircle2,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint1,
	ftl::Conditional<fil::Point2D>& outIntersectionPoint2
)

Parameters

	Name	Type	Default	Description
	inCircle1	const Circle2D&
	inCircle2	const Circle2D&
	outIntersectionPoint1	Conditional<Point2D>&
	outIntersectionPoint2	Conditional<Point2D>&

Examples

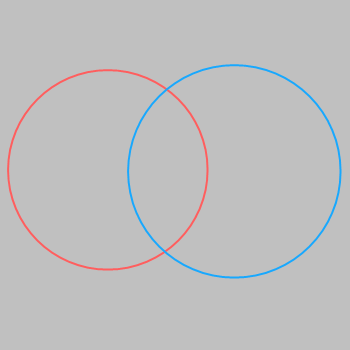

CircleCircleIntersection performed on two circles.
