ImageProjection

Computes the average (or other statistic) for each image row or column and then merges the obtained results into a profile.

	Name	Type	Description
	inImage	Image	Monochromatic image
	inRoi	Region *	Range of pixels to be processed
	inProjectionDirection	ProjectionDirection	Combine pixel values for image rows (horizontal) or columns (vertical)
	inProjectionMode	ProjectionMode	Determines how the pixel values are combined
	outProfile	Profile	Output profile

Only the following inImage pixel formats are supported: 1xuint8, 1xint8, 1xuint16, 1xint16, 1xint32, 1xreal

Description

Computes the average (or other statistic) for each image row or column and then merges the obtained results into a profile.

Examples

ImageProjection performed on a lena.jpg sample.

Mode

Horizontal Direction

Vertical Direction

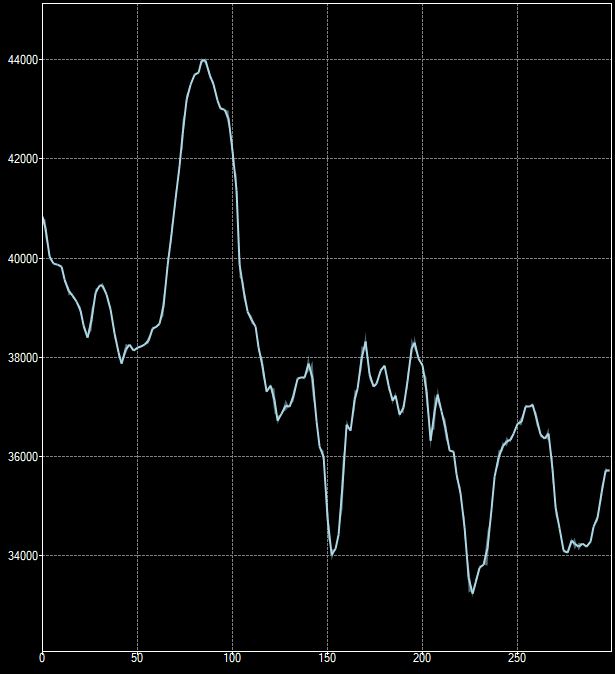

Sum

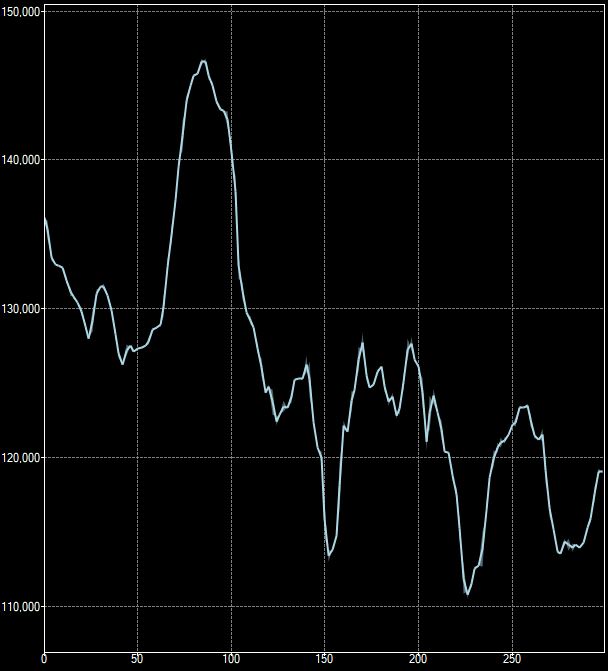

Average

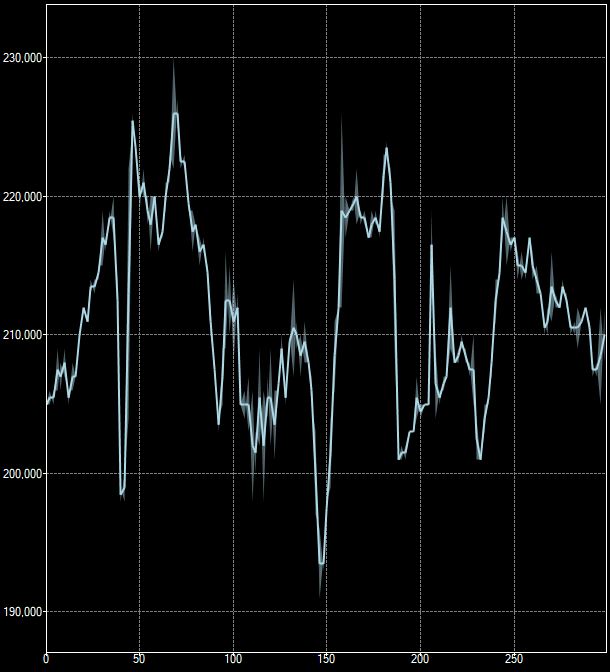

Maximum

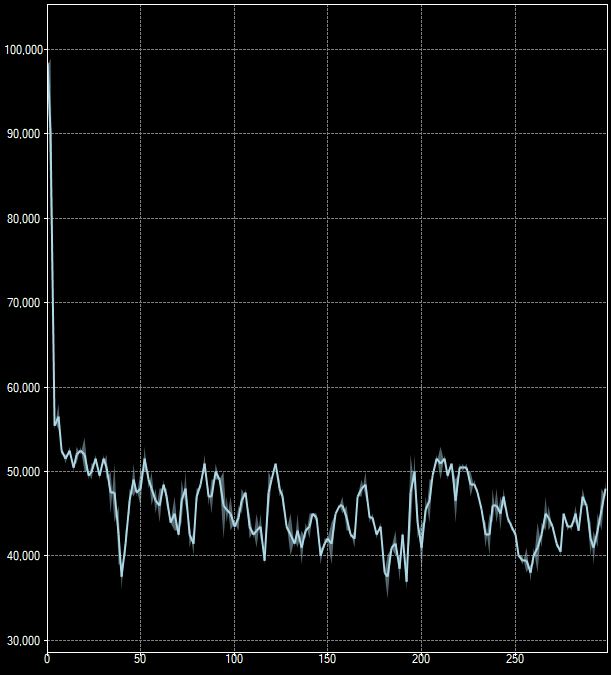

Minimum

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Complexity Level

This filter is available on Advanced Complexity Level.
