Gray-based Template Matching: Basic (gbtm_basic)
Aim
Your task is to create a simple algorithm which will be able to detect a marker on a printed circuit board.
Input

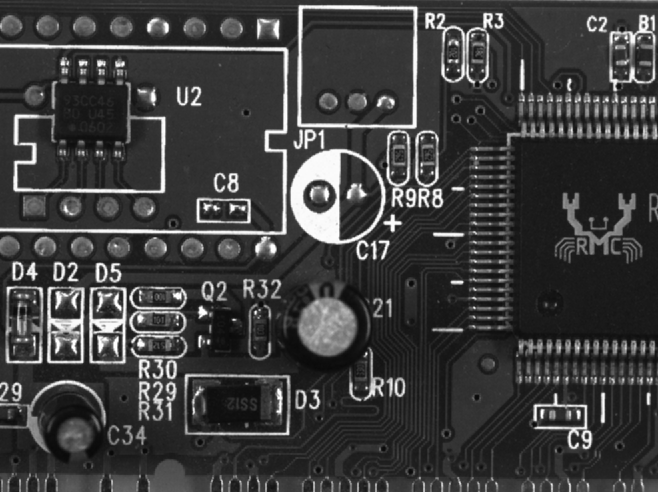

Images of a printed circuit board at different angles.
The input images are stored in
gbtm_basic
directory.
Output

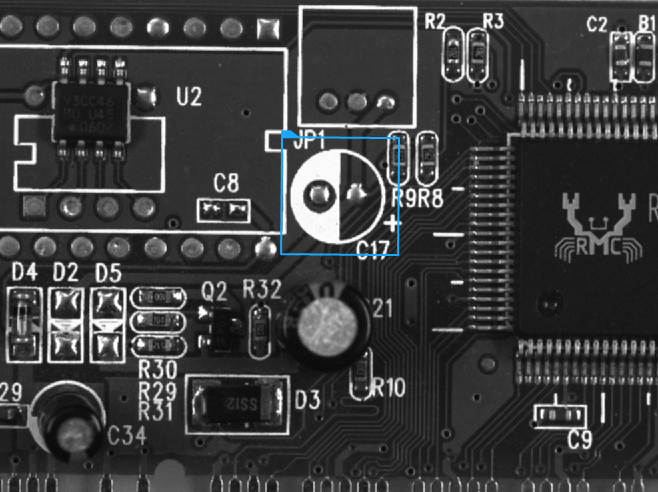

An application that detects the marker.
Hints

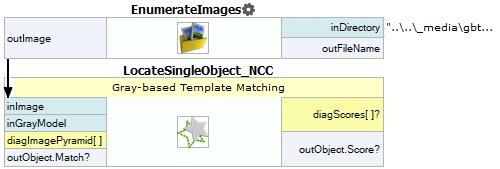

This exercise shows a way to find an object in an image using Gray-based Template Matching. To use GbTM please use LocateSingleObject_NCC filter.

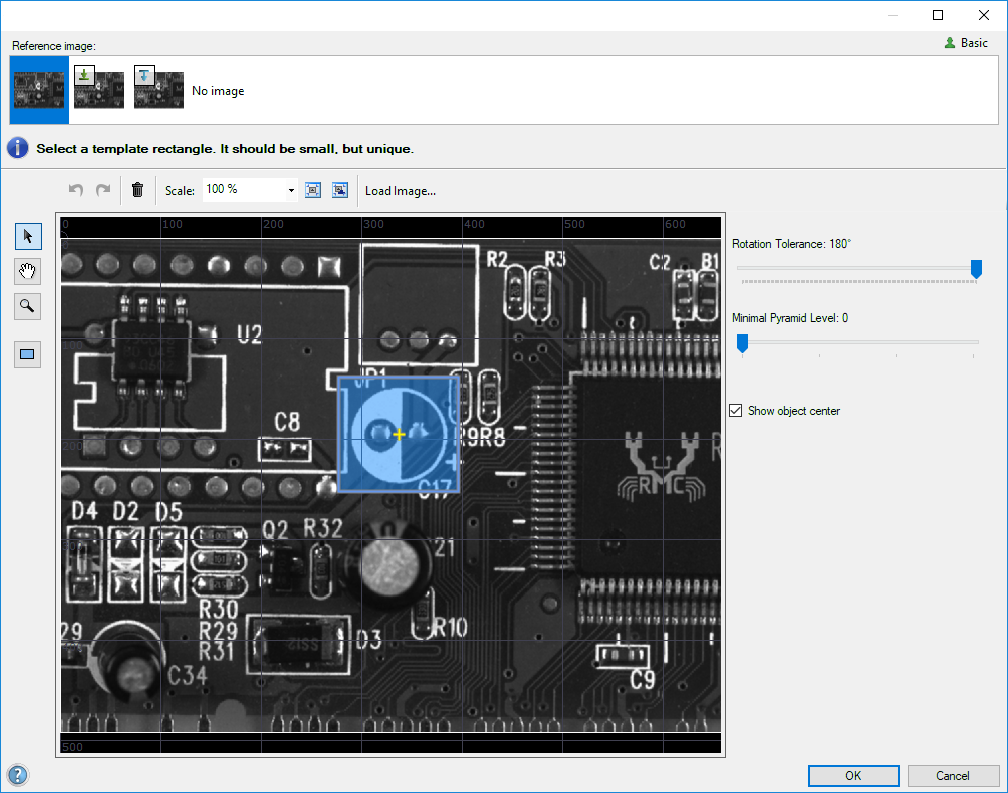

Solution (FIS)
►Click here to show the solution.
Further Readings
- Template Matching - Most detailed description of the Template Matching technique.
