PhotometricStereo_General_Perform
Computes surface normals using images with light source in different places.
| Name | Type | Description | |
|---|---|---|---|
 |
inImages | ImageArray | |
|

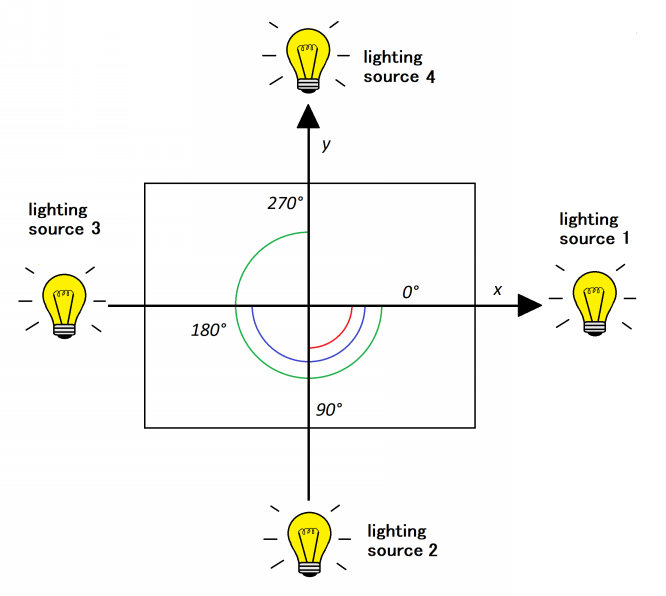

inLightXYAngles | RealArray | Angle of light source on XY plane |
|

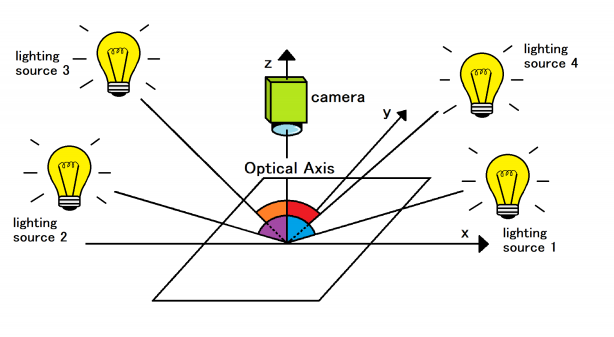

inLightZAngles | RealArray | Angle between light source and normal, where normal is camera optical axis |
 |
outSurfaceNormals | Image | |
|
outIntensities | Image | |
|
outAlbedo | Image |
Errors
This filter can throw an exception to report error. Read how to deal with errors in Error Handling.
List of possible exceptions:
| Error type | Description |
|---|---|
| DomainError | Different image dimensions on input in PhotometricStereo_General_Perform. |
| DomainError | Different types of images on input in PhotometricStereo_General_Perform. |
| DomainError | Inconsistent array sizes in PhotometricStereo_General_Perform. |
| DomainError | Not enough images on input in PhotometricStereo_General_Perform. |
| DomainError | Not single-channel image on input in PhotometricStereo_General_Perform. |
Complexity Level
This filter is available on Basic Complexity Level.
