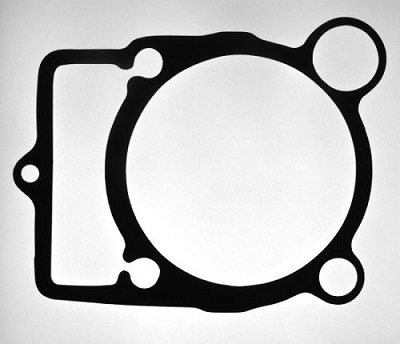

Gasket Inspection

1. Add EnumerateImages filter to get load consecutive images of some disk directory.
2. To find location of the gasket add LocateSingleObject_Edges filter.
   • Click the "..." button at the inEdgeModel input to open the GUI for creating template matching models.
   • Select the template region which should contain characteristic edges of the object, but should be not too big.
   • Mark the SearchRegion, which is an area of possible object centers. Please note that, as in the case of inEdgeModel the smaller SearchRegion, results in the shorter execution time.
3. Add two FitCircleToEdges filters. Connect to them an input image and outObject.Alignment from LocateSingleObject_Edges filter.
   • Click the "..." button at the inFittingField input and set the fitting field.

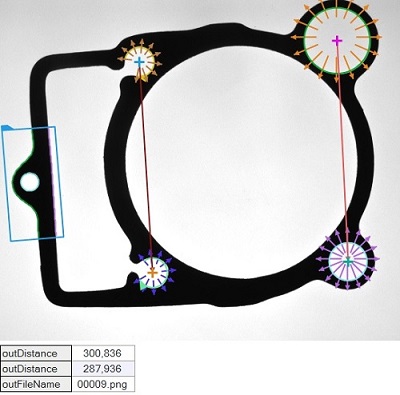

4. Add PointToPointDistance filter and connect to it the outCircle.Center from both FitCircleToEdges filters.
5. Add two FitArcToEdges filters. Connect to them an input image and outObject.Alignment from LocateSingleObject_Edges filter.
   • Click the "..." button at the inFittingField input and set the fitting field.
6. Add PointToPointDistance filter and connect to it the outArc.Center from both FitArcToEdges filters.

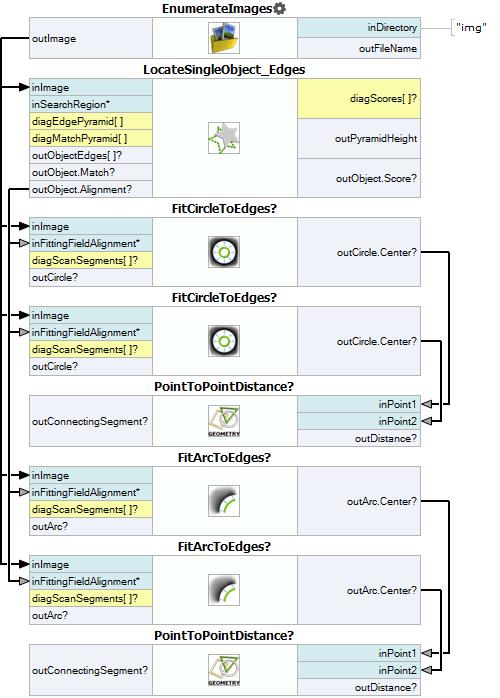

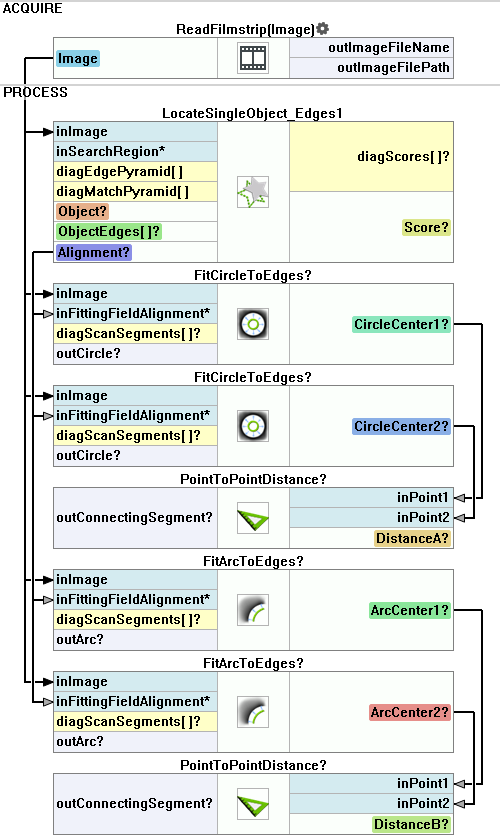

Macrofilter Main
