Fourier Analysis

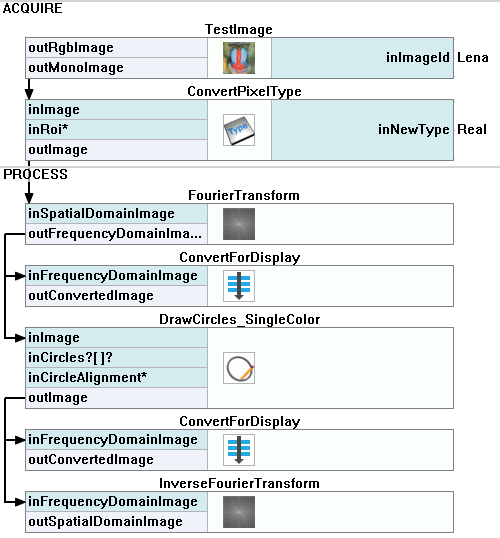

Macrofilter Main

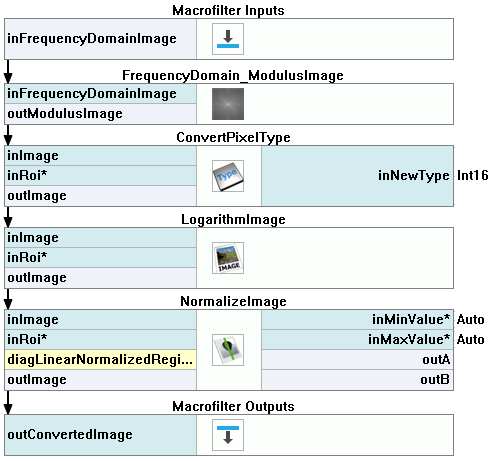

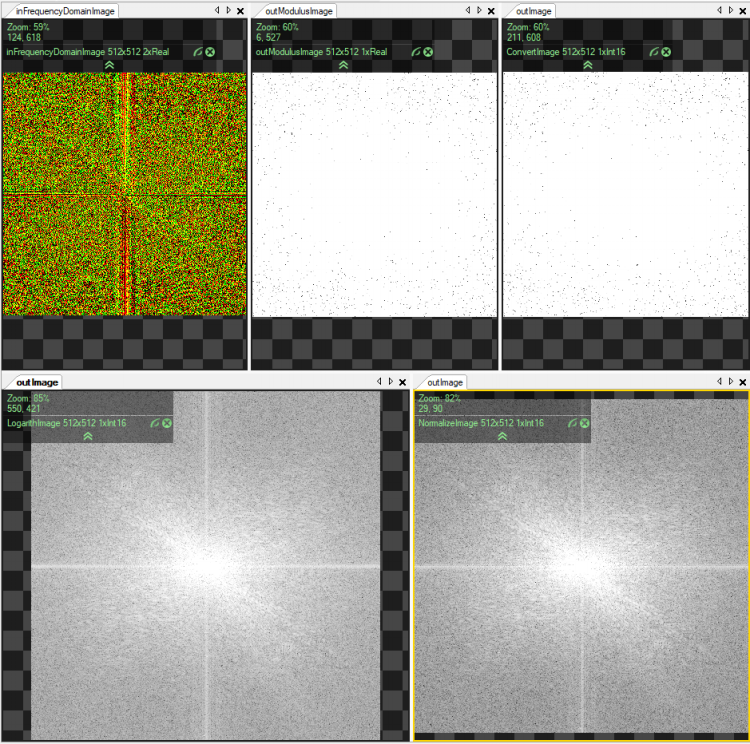

Macrofilter ConvertForDisplay
Used Filters
►Click here to show the filters list.
▼Click here to hide the filters list.
Icon | Name | Description |
---|---|---|
![]() |
FrequencyDomain_ModulusImage | Computes the modulus of each frequency domain image pixel. |
![]() |
TestImage | Makes it possible to quickly present results of various image processing filters. |
![]() |
LogarithmImage | Transforms an image in such a way that a quotient on the input image becomes a difference on the output image. This can be useful for dealing with variable illumination. |
![]() |
FourierTransform | Transforms an image into frequency domain using Fourier transformation |
![]() |
DrawCircles_SingleColor | Draws circles on an image with a single color. |
![]() |
NormalizeImage | Rescales an image linearly, so that its minimum becomes inNewMinimum and the maximum of the remaining pixels becomes inNewMaximum. |
![]() |
InverseFourierTransform | Transforms an image in frequency domain back to spatial domain using inverse Fourier transformation |
![]() |
ConvertPixelType | Changes the type of pixel components. |
