Bottle Flattening

Aim

The aim of the program is to extract a cylindrical surface and transform it into a flat rectangle.

Input

The image of a bottle with a label on a cylindrical surface.

Output

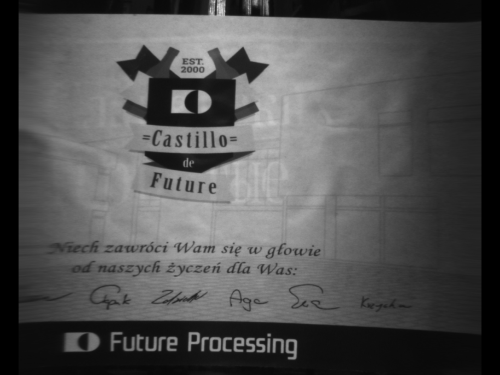

A flattened part of the image showing the label.

Hints

An image presenting a bottle can be flattened in several ways but the easiest one is to think of the bottle as a cylinder and consider one of the Image Spatial Transforms Maps filters to create a proper map and then display it as an image.

Solution (FIS)

  1. Add filter LoadImage.
  2. Add filter CreateCylinderMap and connect outImage from the previous filter with inImageFormat.
  3. In this filter you have to specify inCylinderRectangle input.
    • Click on this input in Properties window.
    • Mark a rectangle on the surface to be flattened.
    • Click OK.
  4. Set inCylinderRadiusCorrection in Properties window to 2.
  5. The previous filter is not going to display the required result, so we have to use an additional filter RemapImage so you have to add it to the program.
  6. Connect inImage with outImage from LoadImage and inSpatialMap with outSpatialMap from CreateCylinderMap.

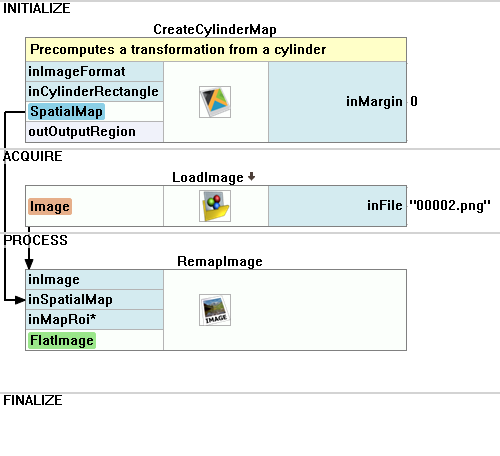

Macrofilter Main

Used Filters

Icon Name Description
LoadImage Loads a single image from a file.
RemapImage Fast (precomputed) image transformations, especially for view undistortion or object geometry correction (e.g. pos recognition of labels on cylindrical bottles).
CreateCylinderMap Inspection of the surface of bottles and other cylindrical objects. The result is used by RemapImage.
