RotateImage

Header:	FIL.h
Namespace:	fil

Rotates an image clockwise.

Syntax

void fil::RotateImage
(
	const fil::Image& inImage,
	float inAngle,
	fil::RotationSizeMode::Type inSizeMode,
	fil::InterpolationMethod::Type inInterpolationMethod,
	const bool inInverse,
	fil::Image& outImage
)

Parameters

Name	Type	Default	Description
inImage	const Image&		Input image
inAngle	float	45.0f	Rotation angle (clockwise)
inSizeMode	RotationSizeMode::Type
inInterpolationMethod	InterpolationMethod::Type	Bilinear
inInverse	const bool	False	'True' changes rotation to counter-clockwise
outImage	Image&		Output image

Description

The operation rotates the inImage around its center. Dimensions of the resulting image depends on inSizeMode parameter. In 'Fit' mode size is extended to fit the rotated image. In 'Preserve' mode size of source image is left unchanged and part of rotated image may be lost. Two modes of pixel interpolation are available, the bilinear filtering being more precise and computationally expensive.

Examples

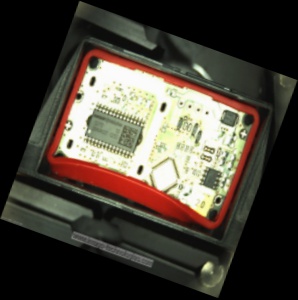

RotateImage performed on the sample image in Fit mode with inAngle = 20.0.

Hardware Acceleration

This operation supports automatic parallelization for multicore and multiprocessor systems.

Errors

List of possible exceptions:

Error type	Description
DomainError	Image dimensions too big in RotateImage.
