NormalizeRectangleOrientation

Header:	FIL.h
Namespace:	fil

Changes orientation of the given rectangle according to parameters.

Syntax

void fil::NormalizeRectangleOrientation
(
	const fil::Rectangle2D& inRectangle,
	const float inReferenceAngle,
	const fil::RectangleOrientation::Type inRectangleOrientation,
	fil::Rectangle2D& outRectangle
)

Parameters

Name	Type	Default	Description
inRectangle	const Rectangle2D&		Input rectangle
inReferenceAngle	const float	0.0f	The middle angle of the valid range of the output rectangle's angle
inRectangleOrientation	const RectangleOrientation::Type	Horizontal	Orientation of the output rectangle
outRectangle	Rectangle2D&

Description

The operation changes the input rectangle's marked corner so the output rectangle's rotation angle is the lowest possible not lower than inReferenceAngle - 90 satisfying the inRectangleOrientation parameter at the same time. Some sample parameters configurations are:

inReferenceAngle = 90, inRectangleOrientation = Any – the marked corner will have the least y coordinate possible
inReferenceAngle = 0, inRectangleOrientation = Any – the marked corner will have the least x coordinate possible
inRectangleOrientation = Horizontal – the output rectangle's width will be not shorter than its height
inRectangleOrientation = Vertical – the output rectangle's height will be not shorter than its width

Examples

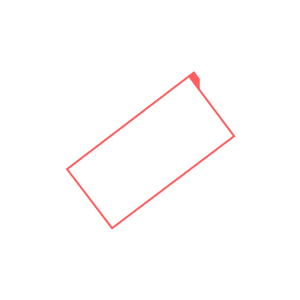

NormalizeRectangleOrientation performed on a sample rectangle with inReferenceAngle = 90 and inRectangleOrientation = Any.
