FIL.DetectCalibrationGrid_CircleBoard
Detects a fixed-size symmetric circle calibration pattern on the image.
Namespace: | FilNet |
---|---|
Assembly: | FIL.NET.dll |
Syntax
C++
C#
public static void DetectCalibrationGrid_CircleBoard ( FilNet.Image inImage, FilNet.Size inBoardSize, float inWorldCircleSpacing, bool inFastApproximate, INullable<List<FilNet.Point2D>> outImagePoints, INullable<List<FilNet.Point2D>> outWorldPlanePoints )
Parameters
Name | Type | Range | Default | Description | |
---|---|---|---|---|---|
![]() | inImage | FilNet.Image | Input image. | ||
![]() | inBoardSize | FilNet.Size | Number of circles in X and Y dimensions. | ||
![]() | inWorldCircleSpacing | float | <0.0f, INF> | 1.0f | Real-world distance between adjacent circles centers. Default value: 1.0f. |
![]() | inFastApproximate | bool | False | Fast filter execution, but result is approximate. Default value: False. | |
![]() | outImagePoints | FilNet.INullable<System.Collections.Generic.List<FilNet.Point2D>> | Image coordinates of detected calibration points. | ||
![]() | outWorldPlanePoints | FilNet.INullable<System.Collections.Generic.List<FilNet.Point2D>> | World plane coordinates of detected calibration points. |
Examples

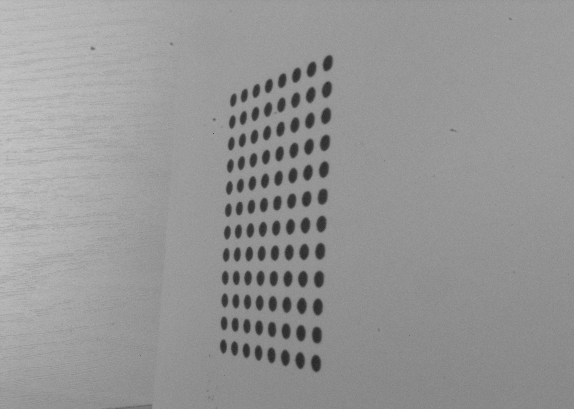

Input image for DetectCalibrationGrid_CircleBoard executed with inBoardSize = {12,8}

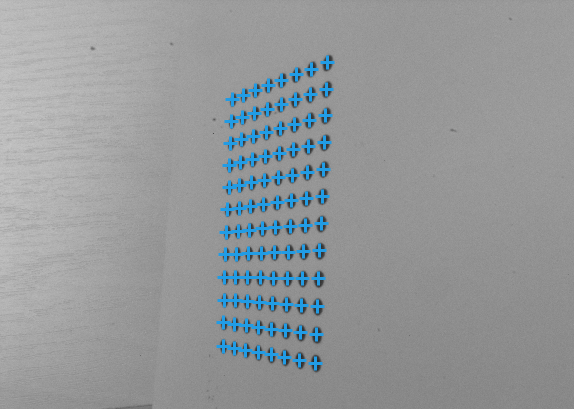

Detected calibration points
Errors
List of possible exceptions:
Error type | Description |
---|---|
DomainError | Input image is too small |
DomainError | Input image must have pixels of UInt8 type |
