DrawArcs_SingleColor

This is Filter Equivalent. This function may be present in generated code, but should not be used in hand-written code.

Draws arcs on an image with a single color.

Syntax

void fis::DrawArcs_SingleColor
(
	const fil::Image& inImage,
	const ftl::Conditional<ftl::Array<ftl::Conditional<fil::Arc2D> > >& inArcs,
	ftl::Optional<const fil::CoordinateSystem2D&> inArcAlignment,
	const fil::Pixel& inColor,
	const fil::DrawingStyle& inDrawingStyle,
	const bool inForceRgb,
	fil::Image& outImage
)

Parameters

Name	Type	Default	Description
inImage	const Image&		Input image
inArcs	const Conditional<Array<Conditional<Arc2D> > >&	{ }
inArcAlignment	Optional<const CoordinateSystem2D&>	NIL
inColor	const Pixel&
inDrawingStyle	const DrawingStyle&	DrawingStyle ( DrawingMode: HighQuality Opacity: 1.0f Thickness: 1.0f Filled: False PointShape: Nil PointSize: 1.0f )
inForceRgb	const bool	True	Filter will convert monochromatic image to RGB if needed
outImage	Image&		Output image

Hints

Define inArcs. This will be the primitives to be drawn.
Define inColor. Please note, that on an N-channel image only first N components of the color will be used.
Set inForceRgb to True, if you want to get a 3-channel output regardless of what is on the input.
Set inDrawingStyle to control quality, opacity, thickness, filling, point shapes and sizes.

Examples

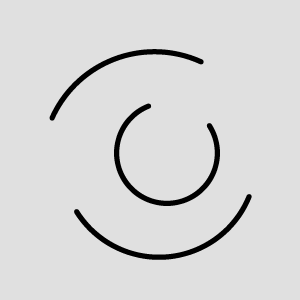

Example usage of the DrawArcs_SingleColor on an empty image.
