RotateSegment

Rotates a segment clockwise around a center point.

Syntax

void fil::RotateSegment
(
	const fil::Segment2D& inSegment,
	ftl::Optional<const fil::Point2D&> inCenter,
	float inAngle,
	bool inInverse,
	fil::Segment2D& outSegment
)

Parameters

Name	Type	Default	Description
inSegment	const Segment2D&
inCenter	Optional<const Point2D&>	NIL	Center of rotation (by default the mass center)
inAngle	float		Clockwise angle of rotation
inInverse	bool		Switches to the inverse operation
outSegment	Segment2D&

Examples

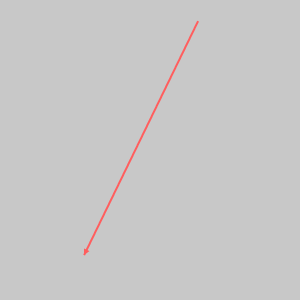

RotateSegment performed on the sample segment, inCenter = Auto, inAngle = 70.0 and inInverse = False.
